QRPay Vend Device
UPI payments for any machine, new or old
India’s 1st portable UPI payment device for vending and self-service machines – water ATMs, napkin, coffee, snack and ticket machines, gaming and amusements. Plug it in and start accepting every UPI app.
Connects with
Models QRS and QRB connect over Wi-Fi.
Live payment alerts on
- App
- SMS
Why QRPay
A compact box that makes any machine cashless
QRPay supports digital payment on new and existing machines – no need to replace the machine you already own.
- Elegant design, compact size
- Plug-and-play type, user-friendly, easy to operate
- Smart connectivity – Wi-Fi or GSM
- Smart display shows UPI-QR and operational status
- Selective interface – pulse or UART
- One year warranty
Where to use

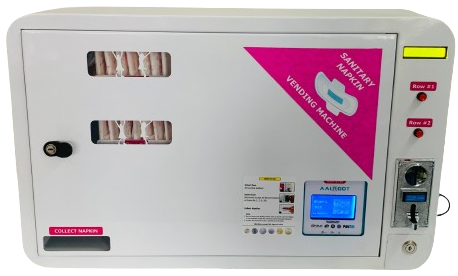

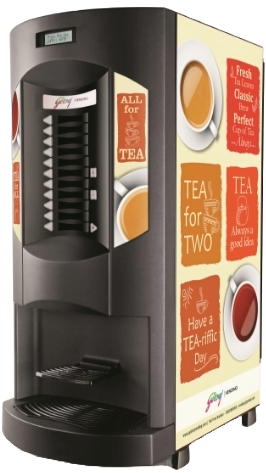

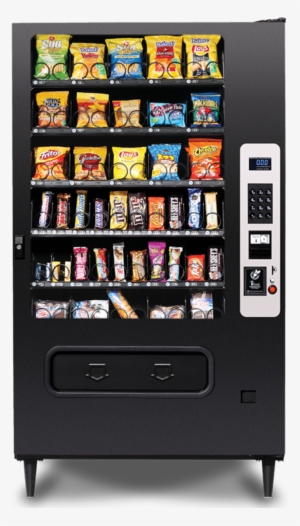

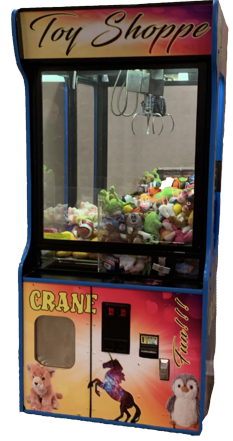

Works with every self-service machine
Interfaces
Selective interface
Choose the connection that matches your machine.
Pulse output
Sends coin-style pulses, so the machine counts a UPI payment just like coins.
Machines that take coins today
UART
A two-way serial link for machines with their own controller board.
Machines with a controller board

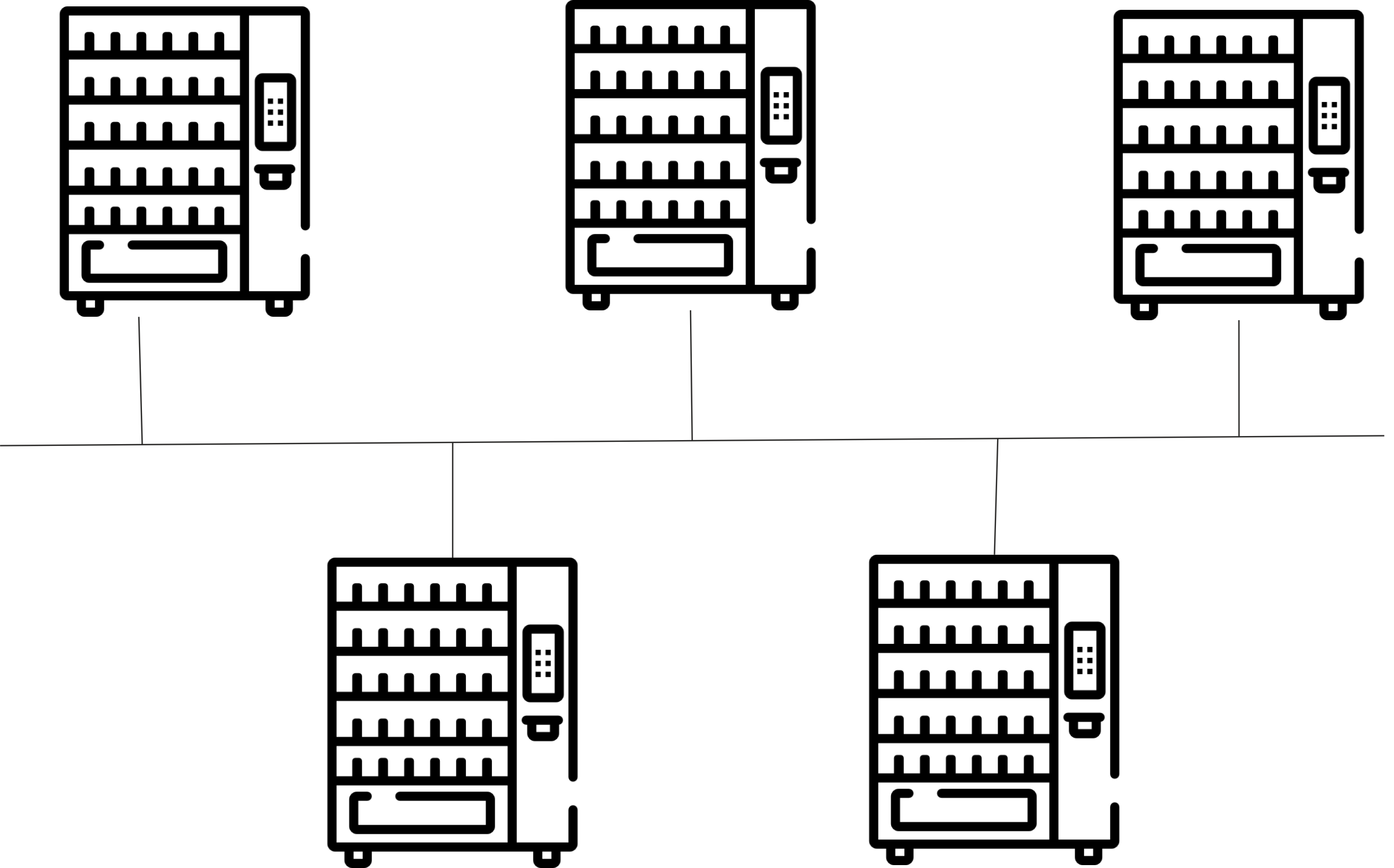

MDBComing soon
The vending industry's standard bus for payment devices.
MDB vending machines

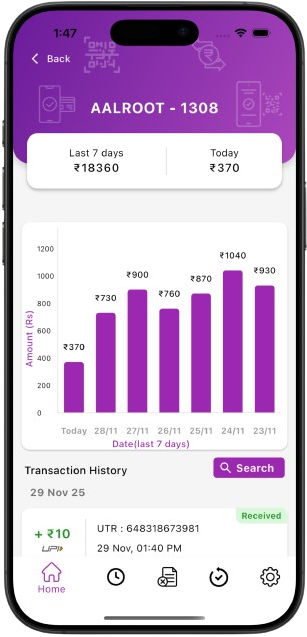

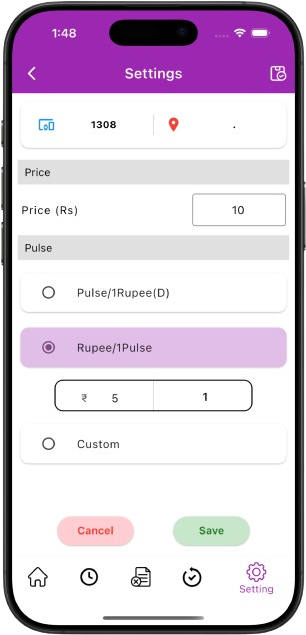

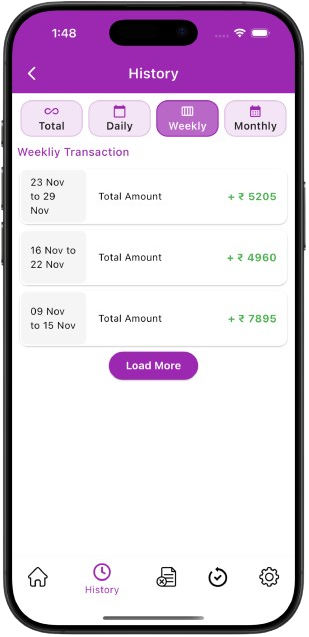

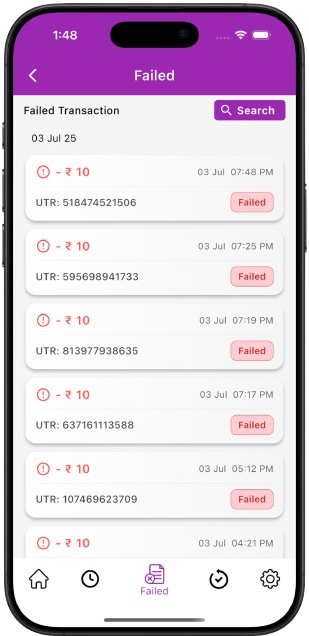

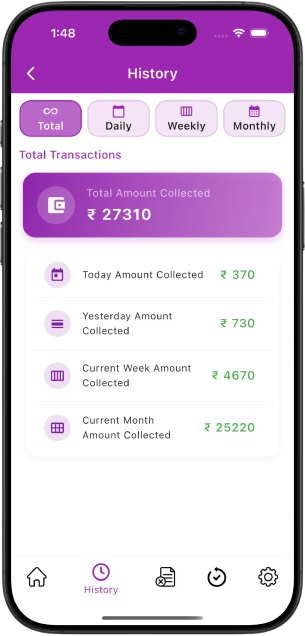

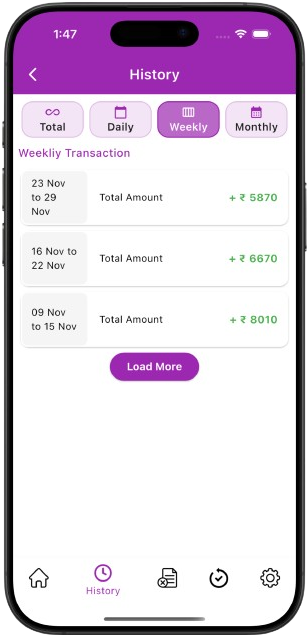

Mobile app
Smart Platform
Every payment shows up live in the app, with email reports and WhatsApp and SMS alerts.
UPI
Pay with any UPI app
Customers pay with the UPI app already on their phone – no coins, no change, no sticker QR that can be swapped.
- 1Scan the QR on the displayQRPay shows a UPI-QR on its smart display.
- 2Pay in any UPI appGoogle Pay, PhonePe, Paytm, BHIM, Amazon Pay and more.
- 3Verified – the machine runsQRPay signals the machine and you get a live alert.
- + any UPI app
Specifications
Technical specifications
Swipe to compare
| Models | QRS | QRB | QRSG | QRBG |
|---|---|---|---|---|
| Connectivity | Wifi | Wifi | GSM | GSM |
| Input Power | 12Vdc | 12Vdc | 12Vdc | 12Vdc |
| Interface | Pulse/UART | Pulse/UART | Pulse/UART | Pulse/UART |
| Inhibit | High (or) Low | High (or) Low | High (or) Low | High (or) Low |
| QR Display | Yes | Yes | Yes | Yes |
| Dimension in mm LxBxH | 120x50x120 | 120x50x180 | 120x50x120 | 120x50x180 |
| Weight in Kg | 0.5 | 0.7 | 0.5 | 0.7 |
Every QRPay device comes with
- Mobile appLive payment monitoring
- Any UPI appGPay, PhonePe, Paytm, BHIM…
- Live alertsApp, Email, WhatsApp & SMS
- 1-year warrantyDesigned & made in India
